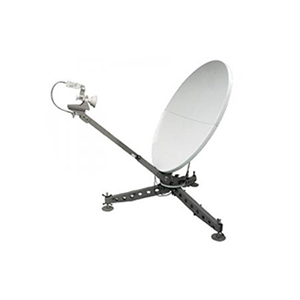

SMP180MFA机动碳纤维便携站天线
更新：2025-10-14 10:21:45 点击：
详情
产品介绍：
SMP180MFA机动碳纤维便携站天线的机动化套件包括预连接器化电缆和允许快速组装、拆卸的一个坚固耐用的户外安装控制器 。
SMP180MFA便携站天线产品定制设计的海拔环比方位三脚架底座提供了最小的重量高刚度，天线组件的设计也减少了组装时间，并提供了需要较少的时间和精力来打包或解包天线的�？榛胺桨� 。
SMP180MFA便携站天线的设计，可以满足商业或现成的架子军事应用的国际性能规格，并在C，X，Ku和Ka波段频率一应俱全 。
产品特征：
1.兼容国际通信卫星Eutelsat
2.多波段C，X，Ku和Ka波段频率
3.集成Feedboom选项
4.紧凑型包装
5.超强的稳定性
6.卓越的可靠性
7.极少维护
8.不到15分钟的装配时间
技术参数：
| Mechanical/Environmental Specifications | ||
| Reflector | 1.8 meters Carbon Fiber | |
| Reflector Configuration | Parabolic Single Offset, 0.8 F/D (7 pieces) | |
| Antenna Travel | ||
| Azimuth | 180° continuous with fine adjust | |
| Elevation | 5 - 90° of reflector bore sight | |
| Polarization | ± 90° | |
| Motorized Antenna Packaging (3 Cases) | ||
| Case 1 - Pedestal Legs / Backbeam | 114 cm x 64 cm x 42 cm (45 kg) | |
| Case 2 - Az Hub / Foot Pads / El Actuator / CTLR | 95 cm x 70 cm x 37 cm (54 kg) | |
| Case 3 & 4 - (7 piece reflector) | 107 cm x 33 cm x 88 cm (35 kg ea.) | |
| Winds | Operational | 40 kph Gusting 72 kph with ballast or anchors |
| Survival | 96 kph with tie downs / any position | |
| Weight | 169 kg | |
| Pointing Loss (operational winds) | 2dB peak (Ku-band Rx) | |
| Integration | Feed boom Mounted | 27.2kg |
| Rain | Operational | 5 cm/h |
| Survival | 10 cm/h | |
| Relative Humidity | 0 - 100% (condensing) | |
| Solar Radiation | 1000 Kcal/h/m | |
| Radial Ice (survival) | 12.7 mm | |
| Corrosive Atmosphere | As encountered in coastal and/or industrial areas | |
| Temperature | Operational | -30 to +60°C |
| Survival | -40 to +70°C | |
